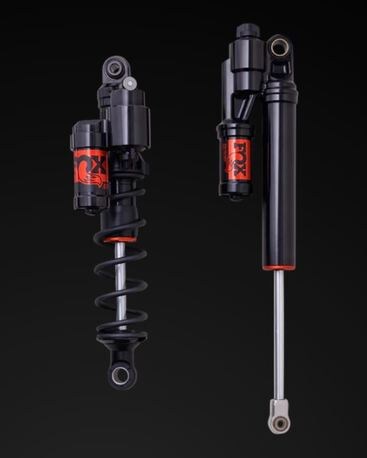

FOX Quick Switch (QS) coil shocks for trail/crossover applications provide the same performance advantage FOX is known for in the backcountry now. Ride harder with less fatigue without a compromise of durability. Experience a new sense of control on the snow due to velocity and position-sensitive damping technology.

Quickly adjust the compression damping with FOX's QS3 to suit snow conditions. Three positions keep the gloves on and the adjustment simple. Focus on riding instead of counting clicks.

FOX's position-sensitive damping technology, Rifle Bore, is now applied to the Factory Race Series rear track shock. Spiral grooves inside the shock allow the oil to flow around the main piston, reducing the damping force in the ride zone for a plush feel. The grooves terminate through the final 30% of the travel, forcing oil to flow through the main piston. The result is a significant increase in bottom-out resistance to cushion hard hits.

Maximize your sled performance by bolting on FOX's new trail/crossover shocks equipped with Rifle Bore position-sensitive technology and QS3 adjustment.

FEATURES
Optimized lightweight spring & shock design
FOX ice scraper technology (FIST)
One-piece, aluminum mounting hardware
High-flow velocity-sensitive damping
Rifle Bore technology (Rear track shock only)
Fully rebuildable and re-tunable
Internal floating piston (IFP)

SERIES Factory
TOP MOUNT Eyelet
BOTTOM MOUNT Eyelet

FOX Quick Switch (QS) coil shocks for trail/crossover applications provide the same performance advantage FOX is known for in the backcountry now. Ride harder with less fatigue without a compromise of durability. Experience a new sense of control on the snow due to velocity and position-sensitive damping technology.

Quickly adjust the compression damping with FOX's QS3 to suit snow conditions. Three positions keep the gloves on and the adjustment simple. Focus on riding instead of counting clicks.

FOX's position-sensitive damping technology, Rifle Bore, is now applied to the Factory Race Series rear track shock. Spiral grooves inside the shock allow the oil to flow around the main piston, reducing the damping force in the ride zone for a plush feel. The grooves terminate through the final 30% of the travel, forcing oil to flow through the main piston. The result is a significant increase in bottom-out resistance to cushion hard hits.

Maximize your sled performance by bolting on FOX's new trail/crossover shocks equipped with Rifle Bore position-sensitive technology and QS3 adjustment.

FEATURES
Optimized lightweight spring & shock design
FOX ice scraper technology (FIST)
One-piece, aluminum mounting hardware
High-flow velocity-sensitive damping
Rifle Bore technology (Rear track shock only)
Fully rebuildable and re-tunable
Internal floating piston (IFP)

SERIES Factory
TOP MOUNT Eyelet
BOTTOM MOUNT Eyelet

The new FOX FLOAT 3 EVOL Quick Switch (QS) are the lightest mountain sled suspension package available. Ride harder in the backcountry with less fatigue without a compromise of durability. Experience a new sense of control on the snow due to less outboard weight.

We designed the air-sprung mountain shocks with two primary objectives: weight reduction and ride performance. FOX optimizes the FLOAT 3 EVOL QS shocks through material reduction without a sacrifice of ride quality or structural integrity. We shaved weight from the reservoir walls and mounting hardware to save weight where it counts. The result is an air shock package in a league of its own.

FOX’s position-sensitive damping technology

FEATURES
Optimized lightweight shock design
Spiral groove bypass
One-piece, aluminum spherical bearings
High-flow velocity-sensitive damping
Fully re-buildable and re-valvable

SERIES Factory Race
TOP MOUNT Eyelet
BOTTOM MOUNT Eyelet
FITMENT NOTES Track (Front & Rear)

FEATURES

- Plug ‘N Play wiring harness
- On the fly, push button adjustment
- Instant adjustment reaction timing
- Aluminum alloy mounting hardware
- LED control switch

ADJUSTMENTS

- Intelligent Quick Switch (iQS), 4 programmed ride settings
- Spring preload
