TRIM/TILTMOTORER

EMP Trimmotor Mercury/Mercruiser V6/V8/Oildyne

Mercruiser
V6 200-250HP, V8 300HP
TR/TRS, R/MR/Alpha One, Alpha Gen II
Bravo, Blackhawk, SSM, Dry Six, M6, NXT
GM & MIE Scorpion engines
Oildyne units
Replaces many early “square body” motors

Mercury
V6 150-300HP (1990-2010)

Mercruiser/Mercury OEM
17649
17649T
891736T

API Marine: PT500NM-2
ARCO: 6218
EMP: 300-02695
Mallory: 9-18207
MES: T1087M
Sea-X: 120-9-18207
Sierra: 18-6772

EMP Trimmotor Johnson/Evinrude 60-300HP (1981-92)

Johnson/Evinrude
Prestolite 1981-92
60-300HP 1981-92
60-75HP (3-Cyl)
85-140HP (4-Cyl)
150-235HP (6-Cyl)
250-300HP (8-Cyl)

Johnson/Evinrude
391264
393259
393988
394176
983019
983304
983446
985237

API Marine: PT301NM
ARCO: 6220
Arrowhead: TRM0004
Mallory: 9-18104
MES: T1086M
Prestolite: PMW4002
ProTorque: PH200-T014
Sea-X: 120-9-18104
Sierra: 18-6759

EMP Trimmotor Johnson/Evinrude 40-250HP

Johnson/Evinrude
40HP 2-cyl
50HP 2-Stroke 3-cyl (1995-)
60/70HP 2-Stroke 3-cyl (1991-)
90/115HP 2-Stroke V4 (1991-)
120/140HP 2-Stroke V4 (1991-94)
130HP 2-Stroke V4 (1995-)
150/175/200/225HP 2-Stroke V6 (1991-)
250HP 2-Stroke (1998-)

Johnson/Evinrude
434495
434496
438529
438531
5005374
5005376

API Marine: PT303NM
ARCO: 6241
Arrowhead: TRM0039
Mallory: 9-18103
MES: T1078M
ProTorque: PH200-T006
Sierra: 18-6780

EMP Trimmotor Mercury/Mariner 25-50HP (1995-)

Mercury/Mariner
25-50HP (1995-)
25-40HP (2-Cyl)
40-50HP (3-Cyl)
40-50HP (4-Cyl)

Mercury/Mariner
827675A1

API Marine: PT498NM
ARCO: 6255
Chrysler/Force: 827675A1
Mallory: 9-18211
Sea-X: 120-9-18211
Sierra: 18-6286

EMP Trimmotor Yamaha 40-50HP (1985-92)

Yamaha
40-50HP (1985-92)

Yamaha
6H5-43880-02
6H5-43880-02-00
6H5-43880-09
6H5-43880-09-00

API Marine: PT613NM
ARCO: 6264
Arrowhead: TRM0059
Mallory: 9-18408
ProTorque: PH200-T048
Sea-X: 120-9-18408
Sierra: 18-6788

Ersätter orginalnummer: 6H5-43880-02 6H5-43880-02-00 6H5-43880-09 6H5-43880-09-00 6H54388002 6H5438800200 6H54388009 6H5438800900

EMP Trimmotor Yamaha 200-300HP (2002-)

Yamaha
F200/LF200 (2002-18)
F225/LF225 (2002-18)
F250/LF250 (2005-18)
F300/LF300 (2010-18)
LZ250/Z250 (2003-06)
LZ300/Z300 (2004-06)

Yamaha
60V-43880-00-00
69J-43880-00-00
69J-43880-01-00

ARCO: 6265 6263
Mallory: 9-18411
Sierra: 18-6798

Ersätter orginalnummer: 60V-43880-00-00 69J-43880-00-00 69J-43880-01-00 60V438800000 69J438800000 69J438800100

EMP Trimmotor Yamaha 40-50HP (1995-01)

Yamaha
40-50 HP 1995-01

Yamaha
62X-43880-00-00
62X-43880-01-00
62X-43880-09-00

ARCO: 6266
Mallory: 9-18401
Sea-X: 120-9-18401
Sierra: 18-6789

Ersätter orginalnummer: 62X-43880-00-00 62X-43880-01 62X-43880-01-00 62X-43880-09 62X-43880-09-00 62X438800000 62X4388001 62X438800100 62X4388009 62X438800900

EMP Trimmotor Mercury/Mariner 40-125HP

Mercury/Mariner
40-125HP 1987-
Nyare 40-125HP

Mercury/Mariner
19217A1
19217A2
19217A3
19217A5
818903A1
822870A1
830150A1
830150A2
830150T2
830250A3
830250T08
830250T3
830250T5
832021A2
832021T2
832021T4
854472A2
854472A3
854472A4
855654A1
855654T08
855654T09
855654T1
855654T2
855654T4
893517T01
898447T01
8M0055011
8M0055014
8M0090335

API Marine: PT4956NK-2
ARCO: 6276
Mallory: 9-18203
Sierra: 18-6777

Ersätter orginalnummer: 818903A1 822870A1 830150A1 830150A2 830150T2 830250A3 830250T08 830250T3 830250T5 832021A2 832021T2 854472A2 854472A3 854472A4 855654T08 855654T09 855654T1 855654T2 855654T4 893517T01 898447T01 8M0055011 8M0055014 8M0090335

EMP Trimmotor Johnson/Evinrude 50-300HP (1993-99)

Johnson/Evinrude
50-300HP (1993-99)
50HP (2-cyl)
50-70HP (3-cyl)
70-115HP (4-cyl)
V6 (1993)
V8 Commercial (1993-)

Johnson/Evinrude/BRP
435548
437666
983446
985237

API Marine: PT309NM
ARCO: 6244
Mallory: 9-18107
MES: T1086M
Sierra: 18-6277

EMP Trimmotor Johnson/Evinrude 35-50HP (1989-)

Johnson/Evinrude
35-50 HP (1989-)

Johnson/Evinrude
435532
437801

API Marine: PT302NM
ARCO: 6242
Mallory: 9-18105
Sierra: 18-6280

EMP Trimmotor Yamaha 40-90HP 2-Stroke

Yamaha
40HP (1994)
50HP (1992-95)
60HP (1992-2005)
70HP (1992-2009)
90HP (1992-2009)

Yamaha
6H1-43880-02-00

API Marine: PT602NM
ARCO: 6260
Mallory: 9-18407
Sierra: 18-6781

Ersätter orginalnummer: 6H1-43880-02-00 6H1438800200

EMP Trimmotor Yamaha 115-225HP (-1996)

Yamaha
115-200 HP 1987-96
225 HP 1990-95

Yamaha
6G5-43880-00-00
6G5-43880-01-00
6G5-43880-02-00

API Marine: PT608NK-3
ARCO: 6265
EMP: 300-26114
Mallory: 9-18405
Sea-X: 120-9-18405
Sierra: 18-6760

Ersätter orginalnummer: 6G5-43880-00-00 6G5-43880-01-00 6G5-43880-02-00 6G5438800000 6G5438800100 6G5438800200

EMP Trimmotor Johnson/Evinrude 35-140HP (1974-88)

Johnson/Evinrude
35-140HP 1974-88
35-60 HP (2-cyl)
65-75 HP (3-cyl)
85-140 HP (V4)

Johnson/Evinrude
172655
172850
173564
173593
173596

ARCO: 6208
Mallory: 9-18101
Sierra: 18-6767-1

Ersätter orginalnummer: 172655 172850 173564 173593 173596 0172655 0172850 0173564 0173593 0173596

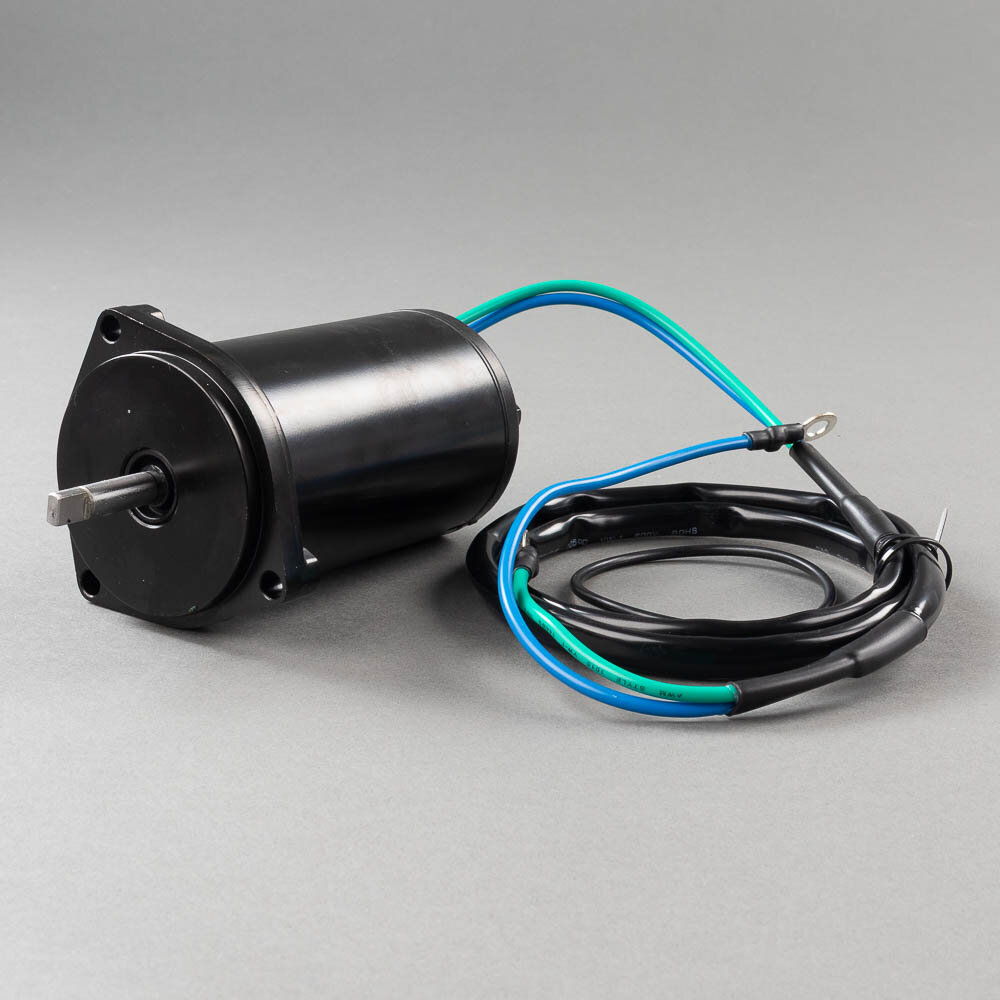

EMP Trimmotor Yamaha F50/T50/F60/T60

Yamaha
50-60 HP 2005-15 (4-Stroke)
F50/T50
F60/T60

Yamaha
6C5-43880-00-00
6C5-43880-01-00

ARCO: 6257
Mallory: 9-18412
Sierra: 18-6836

Ersätter orginalnummer: 6C5-43880-00 6C5-43880-01 6C5-43880-00-00 6C5-43880-01-00 6C5438800000 6C5438800100

EMP Trimmotor Honda BF75-BF225 / Suzuki DF9.9/15/DF150-300

Honda
BF75/BF90/BF115 (2007-)
BF135/BF150 (2004-)
BF200/BF225 (2002-)

Suzuki
DF9.9/DF15 (2004-13)
DF150-DF300 (2004-)

Honda
36120-ZY6-013
36120-ZY6-023

Suzuki
38100-93J02
38100-93J12

API Marine: PT314NM
Arco: 6235
Sierra: 18-6745

Ersätter orginalnummer: 36120-ZY6-013 36120-ZY6-023 36120ZY6013 36120ZY6023 38100-93J02 38100-93J12 3810093J02 3810093J12

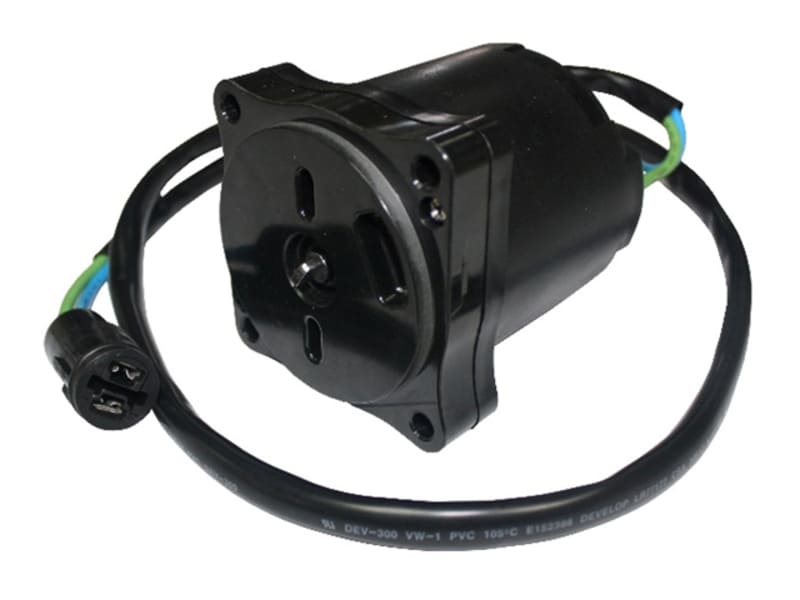

EMP Trimmotor Honda BF75-BF225

Honda
BF75/BF90 (2007-)
BF135/BF150 (2004-)
BF175 (2007-)
BF200/BF225 (2002-)

Honda
36120-ZY3-003
36120-ZY3-013
36120-ZY3-023

API Marine: PT314NM
ARCO: 6234
Sea-X: 120-9-01577
Sierra: 18-6742

Ersätter orginalnummer: 36120-ZY3-003 36120-ZY3-013 36120-ZY3-023 36120ZY3003 36120ZY3013 36120ZY3023

EMP Trimmotor Yamaha F25/T25/F30/F40

Yamaha
F25 1998-
T25 2002-
F30 2001-
F40 2000-

Yamaha
67C-43880-00-00
67C-43880-01-00
65W-43880-01-00
65W-43880-10-00

Pro Torque: PH200-T073
Sea-X: 120-9-01492
Sierra: 18-6748

Ersätter orginalnummer: 67C-43880-00-00 67C-43880-01-00 65W-43880-01-00 65W-43880-10-00 67C438800000 67C438800100 65W438800100 65W438801000

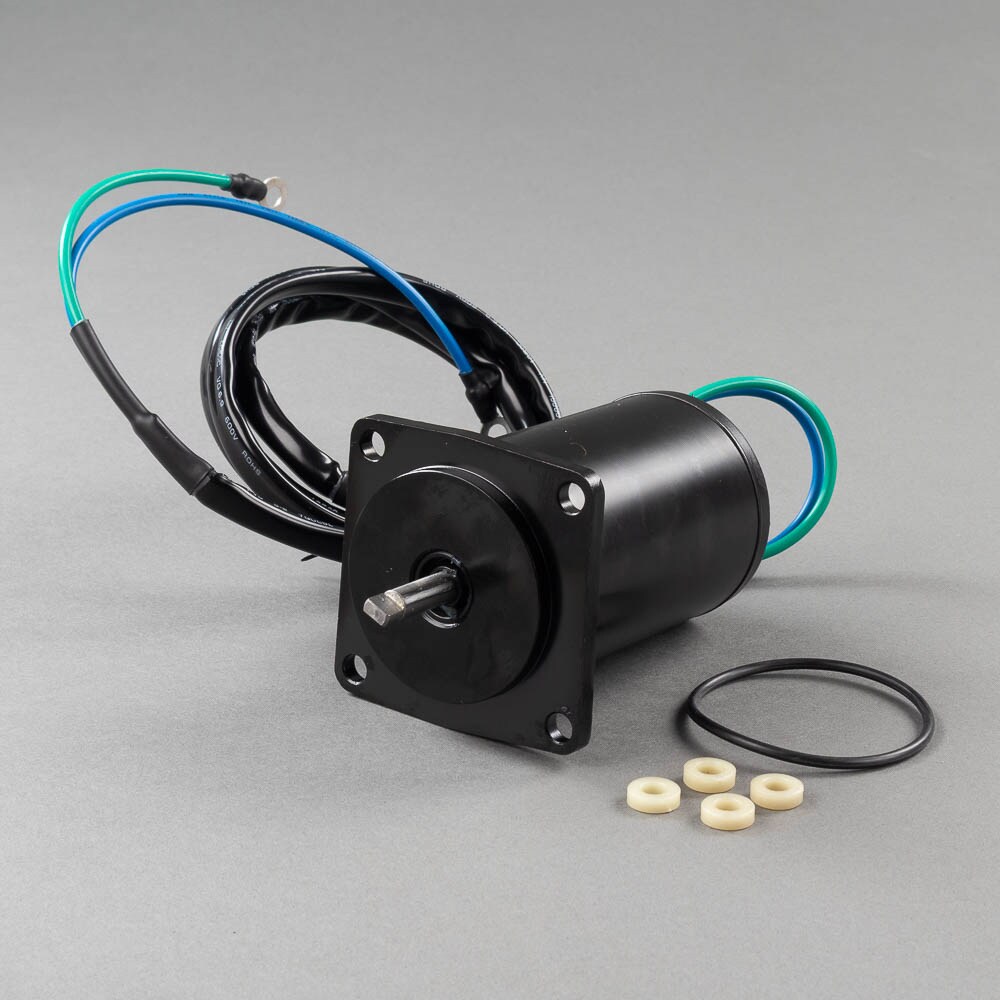

EMP Trimmotor Yamaha F75/F80/F90/F100 (1999-04)

Yamaha
F75 2003-2004
F80 1999-2004
F90 2003-2004
F100 1999-2004

Yamaha
67F-43880-00-00

API Marine: PT615NM
ARCO: 6261
Mallory: 9-18410
Sea-X: 120-9-18410
Sierra: 18-6787

Ersätter orginalnummer: 67F-43880-00-00 67F438800000

EMP Trimmotor Yamaha 50-90HP 2-Stroke

Yamaha 2-Stroke
40HP 3-cyl (1994)
50HP (1992-95)
60-70HP (1992-06)
75HP (1994-99)
80HP (1997)
85HP (1992-96)
90HP (1992-01)

3-wire connection
70.5mm flange
4mm shaft

Yamaha
69J-43380-00-00
69J-43380-01-00
6H1-43880-00
6H1-43880-00-00

ARCO: 6267
Sierra: 18-6259

Ersätter orginalnummer: 69J-43380-00-00 69J-43380-01-00 6H1-43880-00 6H1-43880-00-00 69J433800000 69J433800100 6H14388000 6H1438800000

EMP Trimmotor Johnson/Evinrude E-TEC 15-60HP

Johnson/Evinrude
15HP E-Tec (2010-)
25HP E-Tec (2009-)
30HP E-Tec (2009-)
40HP E-Tec (2004-)
50HP E-Tec (2004-)
60HP E-Tec (2006-)

Johnson/Evinrude
5005822
5005831
5005875
5006479

Arco: 6248
Arrowhead: TRM0086
Sea-X: 120-9-01551
Sierra: 18-6815

EMP Trimmotor Yamaha 40-70HP (2001-)

Yamaha
40-60 HP (2-Stroke) 2001-
50-70 HP (4-Stroke) 2001-

Yamaha
62Y-43880-00-00
62Y-43880-01-00
62Y-43800-01-4D
62Y-43800-01-8D
62Y-43880-02-00
62Y-43800-10-8D
62Y-43800-11-00
62Y-43800-12-00
69W-43880-00-00
69W-43880-01-00
CS3-43880-00-00

API Marine: PT614NM
ARCO: 6259
Mallory: 9-18409
Sierra: 18-6811

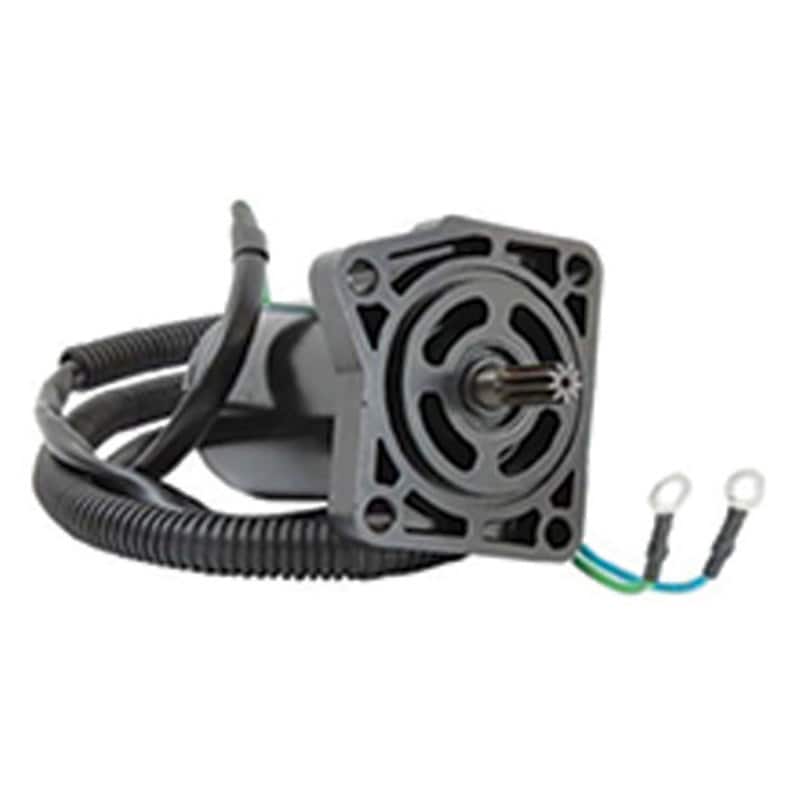

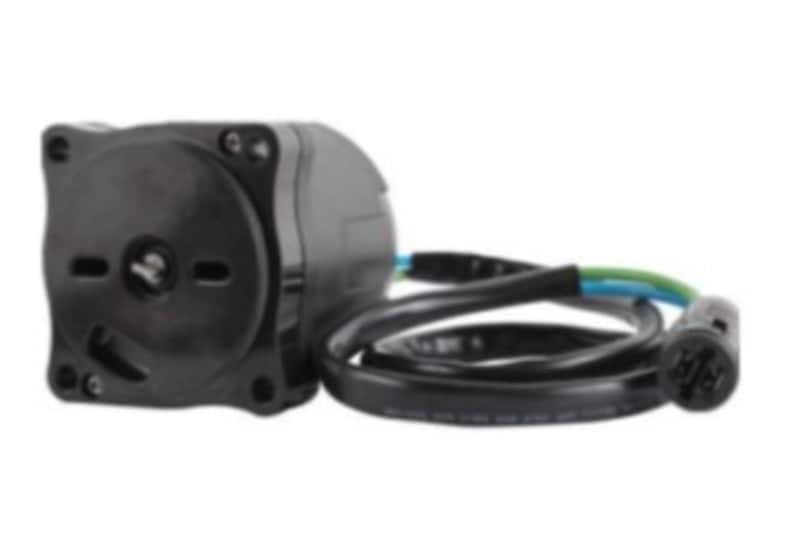

Sea-X trimmotor Yamaha F25/T25/F30/F40

Yamaha
F25 1998-
T25 2002-
F30 2001-
F40 2000-

Yamaha
67C-43880-00-00
67C-43880-01-00
65W-43880-01-00
65W-43880-10-00

EMP: 300-55546
Pro Torque: PH200-T073
Sierra: 18-6748

Ersätter orginalnummer: 67C-43880-00-00 67C-43880-01-00 65W-43880-01-00 65W-43880-10-00 67C438800000 67C438800100 65W438800100 65W438801000

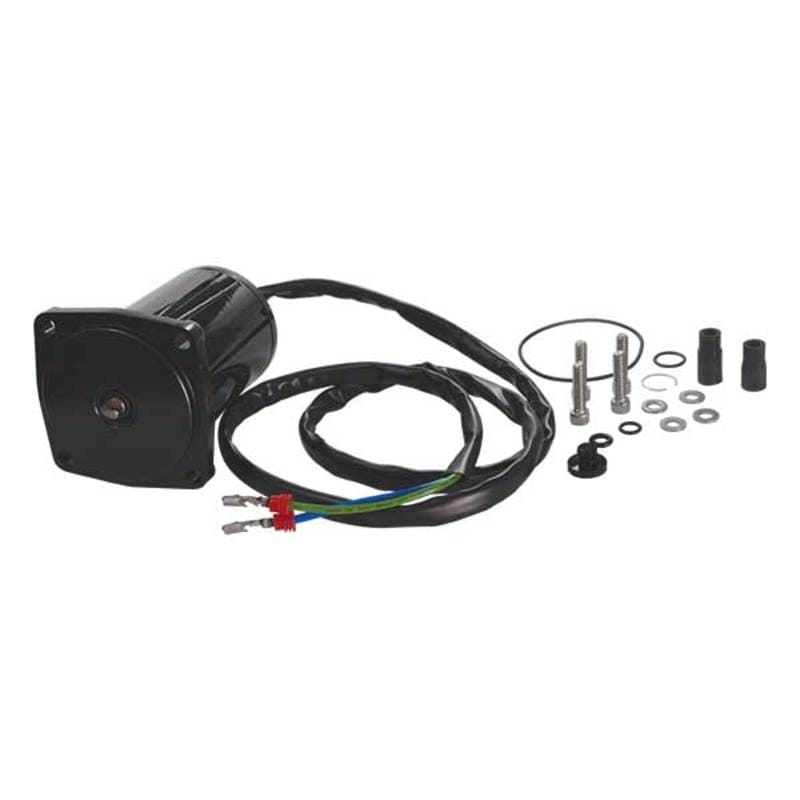

Sea-X trimmotor Johnson/Evinrude E-TEC 15-60HP

Johnson/Evinrude
15HP E-Tec (2010-)
25HP E-Tec (2009-)
30HP E-Tec (2009-)
40HP E-Tec (2004-)
50HP E-Tec (2004-)
60HP E-Tec (2006-)

Johnson/Evinrude
5005822
5005831
5005875
5006479

Arco: 6248
Arrowhead: TRM0086
EMP: 300-87204
Sierra: 18-6815

Sea-X trimmotor Johnson/Evinrude E-TEC 75-130HP

Johnson/Evinrude
40/50HP (2-Stroke) 2001-04
75/90 E-TEC 2005-2012
115 E-TEC 2007-2011
130 E-TEC 2009-2011

Johnson/Evinrude
5005817
5005838
5006319

ARCO: 6247

Sea-X trimmotor Suzuki DF60-DF100 / DF115-DF300

Suzuki
DF60-DF100 (2001-09)
DF115-DF300 (2001-22)

Suzuki
38100-92J02
38100-92J03
38100-92J10
38100-92J11
38100-92J12
38100-92J13
38100-93J00
38100-93J01
38100-93J02
38100-93J03
38100-93J04
38100-96J00
38100-96J01
38100-96J10
38100-96J11
38100-96J12

API Marine: PT653NM
Mallory: 9-18303
Sierra: 18-18303

Ersätter orginalnummer: 38100-92J02 38100-92J03 38100-92J10 38100-92J11 38100-92J12 38100-92J13 38100-93J00 38100-93J01 38100-93J02 38100-93J03 38100-93J04 38100-96J00 38100-96J01 38100-96J10 38100-96J11 38100-96J12 3810092J02 3810092J03 3810092J10

Sea-X trimmotor Yamaha 75-100HP 4-Stroke (2005-17)

Yamaha 75-100HP 4-Stroke (2005-17)
F75TR/BET (2005)
F75TLR (2005-11)
F75LA (2012-17)
F80AET/BET (2005-06)
F80 (2005-)
F90TJR/TLR (2005-11)
F90JA/LA/XA (2012-17)
F100AET/DET (2005-06)
F100 (2005-)

Yamaha
6D8-43880-00
6D8-43880-01
6D8-43880-09

API Marine: PT627NM
ARCO: 6258
EMP: 300-53761
ProTorque: PH200-T068

Ersätter orginalnummer: 6D8-43880-00 6D8-43880-01 6D8-43880-09 6D8-43880-00-00 6D8-43880-01-00 6D8-43880-09-00 6D84388000 6D84388001 6D84388009

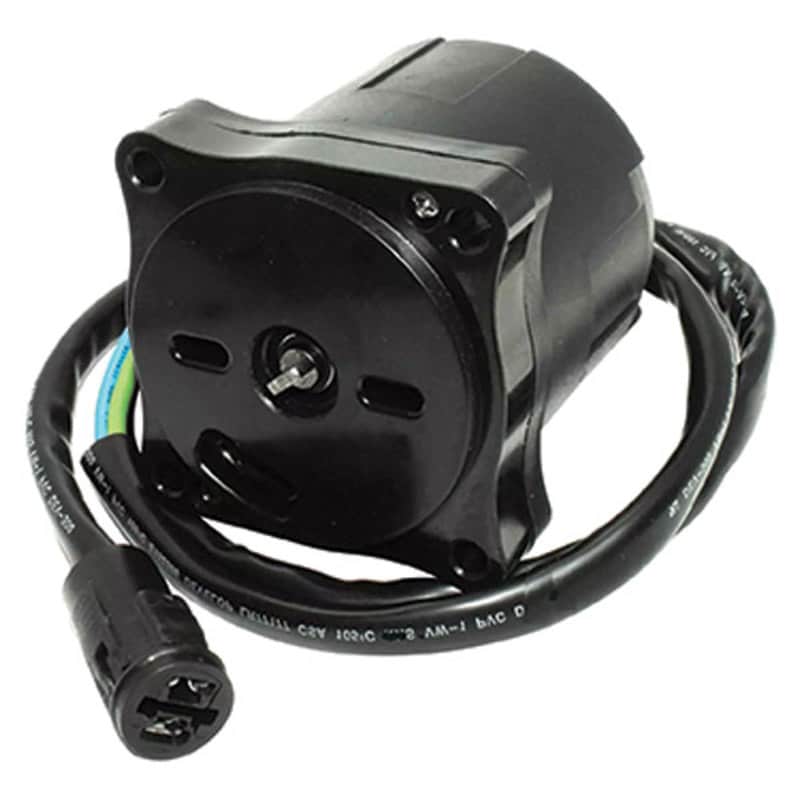

Sea-X trimmotor Honda BF75-BF225

Honda
BF75/BF90 (2007-)
BF135/BF150 (2004-)
BF175 (2007-)
BF200/BF225 (2002-)

Honda
36120-ZY3-003
36120-ZY3-013
36120-ZY3-023

API Marine: PT314NM
ARCO: 6234
EMP: 300-55545
Sierra: 18-6742

Ersätter orginalnummer: 36120-ZY3-003 36120-ZY3-013 36120-ZY3-023 36120ZY3003 36120ZY3013 36120ZY3023

Sea-X trimmotor Honda BF40/50 (2004-) / Suzuki DF40/50/60 (2010-)

Honda
BF25D/BF30D
BF40 2004-
BF50 2004-

Suzuki
DF40A 2010-
DF50A 2010-
DF60A 2010-

Honda
36120-ZW2-F12
36120-ZW4-H12
36120-ZZ3-003

Suzuki
38100-88L00
38100-88L11
38100-88L12

Tohatsu
3Z5-77180-0

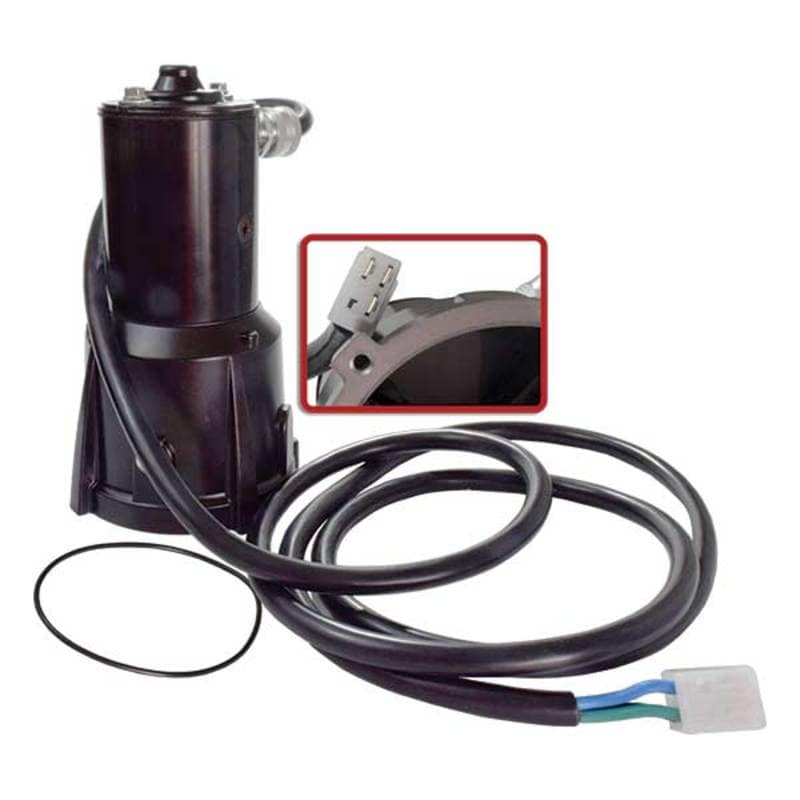

Sea-X trimmotor Johnson/Evinrude 35-140HP (1974-88)

Johnson/Evinrude
35-140HP 1974-88
35-60 HP (2-cyl)
65-75 HP (3-cyl)
85-140 HP (V4)

Johnson/Evinrude
172655
172850
173564
173593
173596

ARCO: 6208
EMP: 300-51762
Mallory: 9-18101
Sierra: 18-6767-1

Ersätter orginalnummer: 172655 172850 173564 173593 173596 0172655 0172850 0173564 0173593 0173596

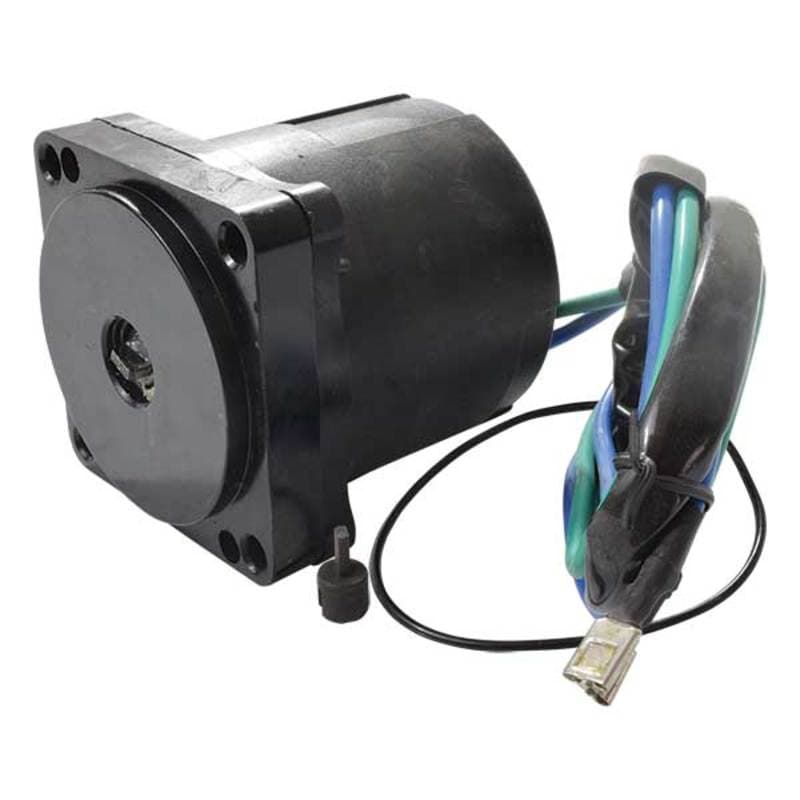

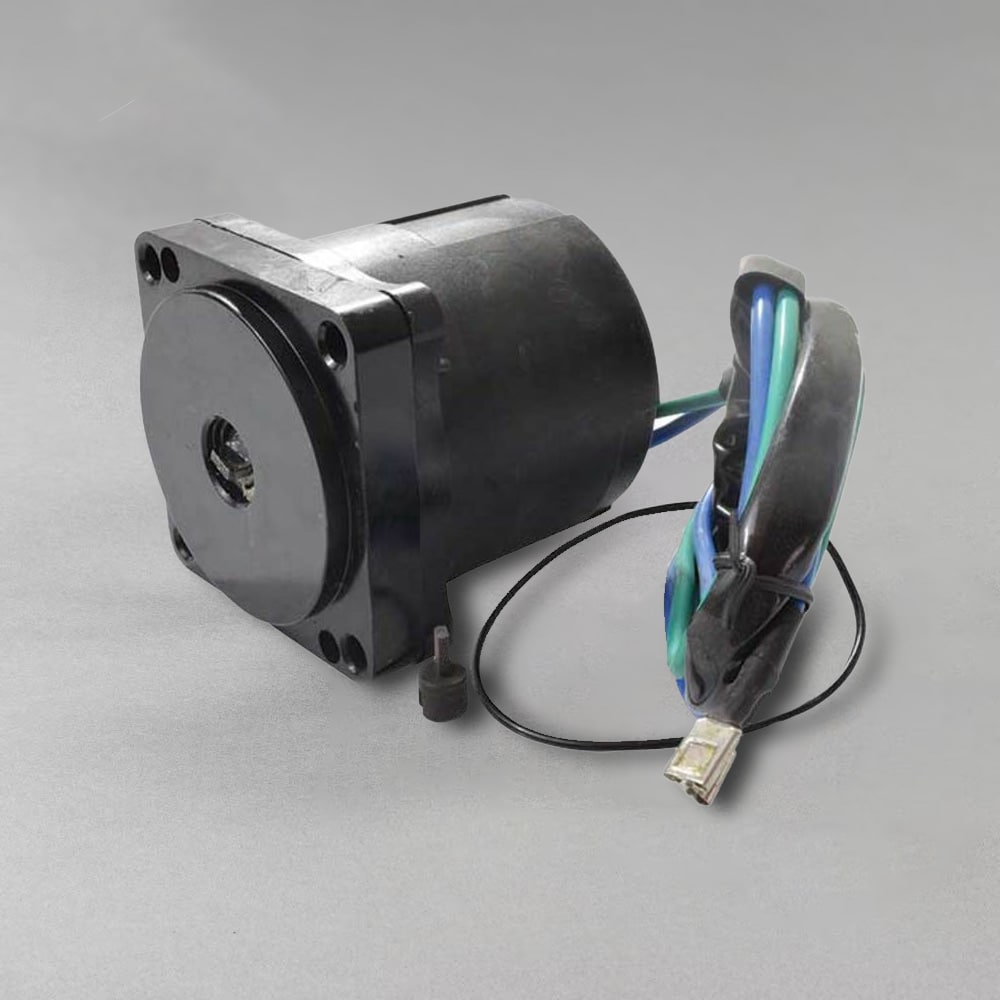

Sea-X trimmotor Johnson/Evinrude 50-250HP 2-Stroke

Johnson/Evinrude
50HP 2-Stroke 3-cyl (1995-)
60/70HP 2-Stroke 3-cyl (1991-)
90/115HP 2-Stroke V4 (1991-)
120/140HP 2-Stroke V4 (1991-94)
130HP 2-Stroke V4 (1995-)
150/175/200/225HP 2-Stroke V6 (1991-)
250HP 2-Stroke (1998-)

Johnson/Evinrude
434495
434496
438529
438531
5005374
5005376

API Marine: PT303NM
Arco: 6241
EMP: 300-08013
Mallory: 9-18103
MES: T1078M
Sierra: 18-6780

Ersätter orginalnummer: 434495 434496 438529 438531 5005374 5005376 0434495 0434496 0438529 0438531

Sea-X trimmotor Johnson/Evinrude/Honda

Johnson/Evinrude
40/48/50HP 1989-

Honda
35-50HP 1992-
BF35
BF40
BF45
BF50

Johnson/Evinrude
433226

Honda
36120-ZV5-821

API Marine: PT302NM PT308NM
Arco: 6239 6242 6243
EMP: 300-26102
Mallory: 9-18105
Protorque: PH200-T021
Sierra: 18-6285

Sea-X trimmotor Johnson/Evinrude 75-250HP (1998-)

75-250HP (1998-)

Johnson/Evinrude
438786 / 0438786
439937 / 0439937
5005254

Arco: 6238
Mallory: 9-18106
MES: T1076M
Sierra: 18-6281

Sea-X trimmotor Mercury/Mariner 40-125HP

Mercury/Mariner
40-125HP 1987-
Uudemmat 40-125HP

Mercury/Mariner
19217A1
19217A2
19217A3
19217A5
818903A1
822870A1
830150A1
830150A2
830150T2
830250A3
830250T08
830250T3
830250T5
832021A2
832021T2
832021T4
854472A2
854472A3
854472A4
855654A1
855654T08
855654T09
855654T1
855654T2
855654T4
893517T01
898447T01
8M0055011
8M0055014
8M0090335

API Marine: PT4956NK-2
ARCO: 6276

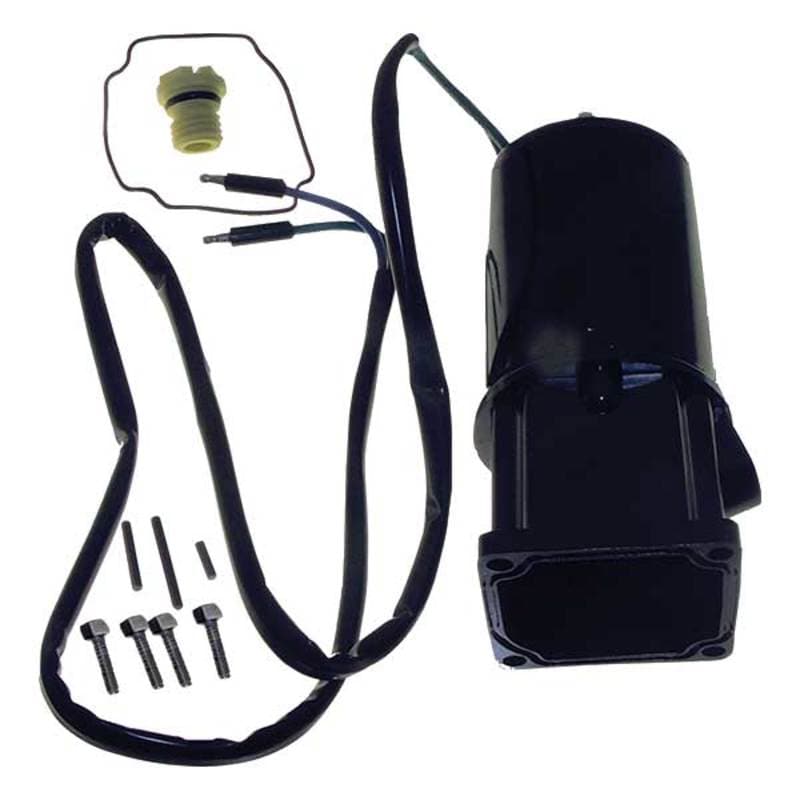

EMP: 300-26101
Mallory: 9-18203
Sierra: 18-6777

Ersätter orginalnummer: 818903A1 822870A1 830150A1 830150A2 830150T2 830250A3 830250T08 830250T3 830250T5 832021A2 832021T2 854472A2 854472A3 854472A4 855654T08 855654T09 855654T1 855654T2 855654T4 893517T01 898447T01 8M0055011 8M0055014 8M0090335

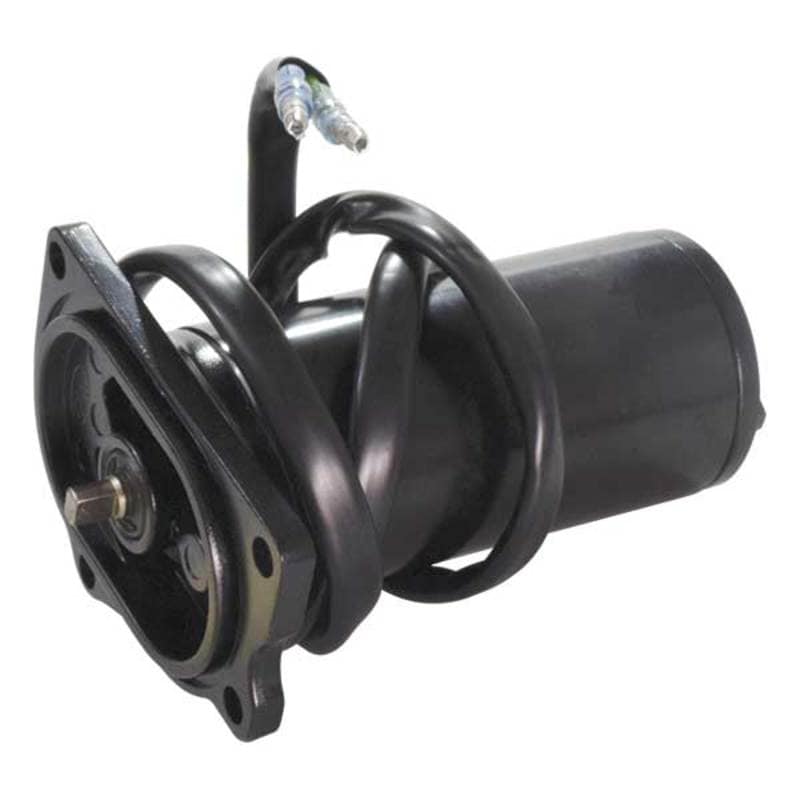

Sea-X trimmotor Mercury/Mariner 25-50HP

Mercury/Mariner
25-50HP 1995-
25-40HP (2-Cyl)
40-50HP (3-Cyl)
40-50HP (4-Cyl)
Nyare modeller 25-50HP

Mercury/Mariner
827675A1

API Marine: PT498NM
ARCO: 6255
Chrysler/Force: 827675A1
EMP: 300-08525
Mallory: 9-18211
Sierra: 18-6286

Sea-X trimmotor Suzuki DF40/50 (01-10) / Honda BF40/50 (02-03)

Suzuki
DF40 2001-2010
DF50 2001-2010

Honda
BF40 2002-2003
BF50 2002-2003

Suzuki
38100-87J10
38100-87J11
38100-87J12
38100-87J20
38100-87J21

Honda
36120-ZV5-822
36120-ZV5-821

API Marine: PT656NM
EMP: 300-55543
Mallory: 9-18302
Sierra: 18-6793

Ersätter orginalnummer: 38100-87J10 38100-87J11 38100-87J12 38100-87J20 38100-87J21 3810087J10 3810087J11 3810087J12 3810087J20 3810087J21 36120-ZV5-822 36120ZV5822

Sea-X trimmotor Yamaha 40-50HP (1995-01)

Yamaha
40-50 HP 1995-01

Yamaha
62X-43880-00-00
62X-43880-01-00
62X-43880-09-00

ARCO: 6266

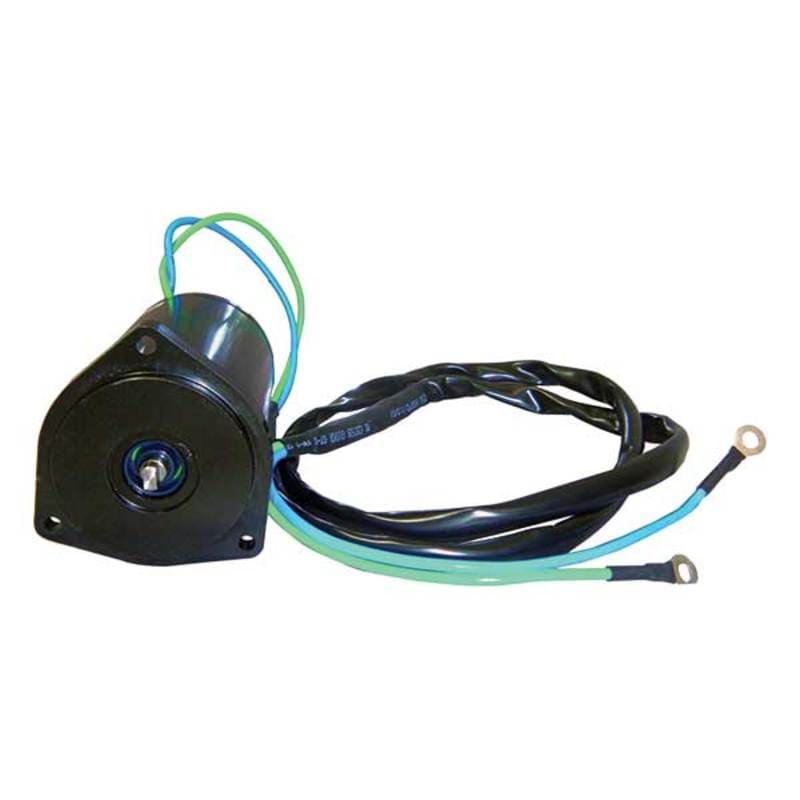

EMP: 300-19898
Mallory: 9-18401
Sierra: 18-6789

Ersätter orginalnummer: 62X-43880-00-00 62X-43880-01 62X-43880-01-00 62X-43880-09 62X-43880-09-00 62X438800000 62X4388001 62X438800100 62X4388009 62X438800900

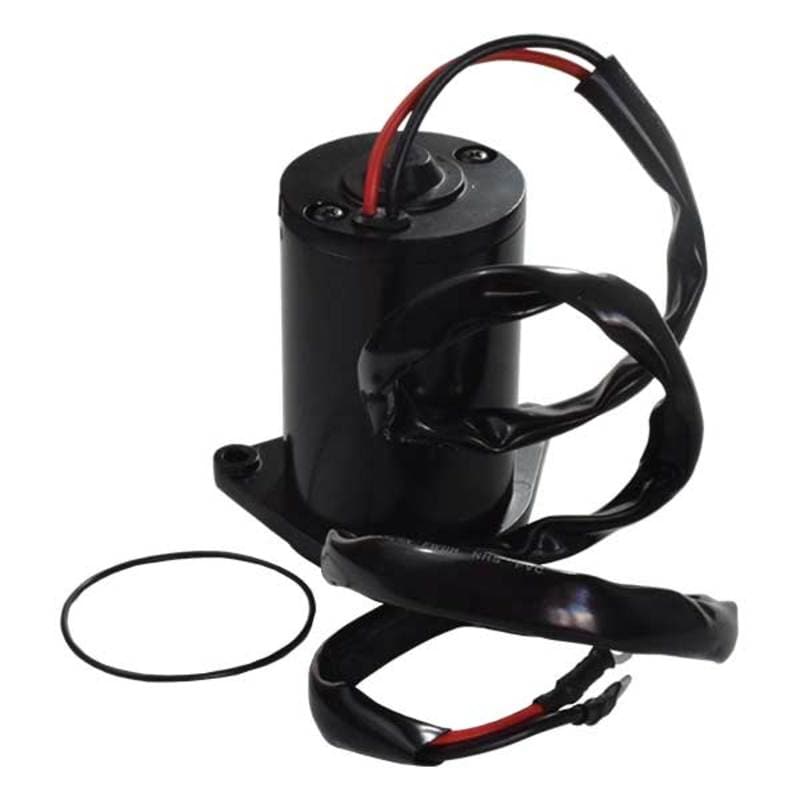

Sea-X trimmotor Yamaha 40-90HP 2-Stroke

Yamaha
40HP (1994)
50HP (1992-95)
60HP (1992-2005)
70HP (1992-2009)
90HP (1992-2009)

Yamaha
6H1-43880-02-00

API Marine: PT602NM
ARCO: 6260
EMP: 300-26113
Mallory: 9-18407
Sierra: 18-6781

Sea-X trimmotor Yamaha 40-50HP 2-Stroke / 50-70HP 4-Stroke (2001-)

Yamaha
40-50 HP (2-Stroke) 2001-
50-70 HP (4-Stroke) 2001-
Nyare 4-takt modeller

Yamaha
62Y-43880-00-00
62Y-43880-01-00
62Y-43800-01-4D
62Y-43800-01-8D
62Y-43880-02-00
62Y-43800-10-8D
62Y-43800-11-00
62Y-43800-12-00
69W-43880-00-00
69W-43880-01-00
CS3-43880-00-00

API Marine: PT614NM
ARCO: 6259

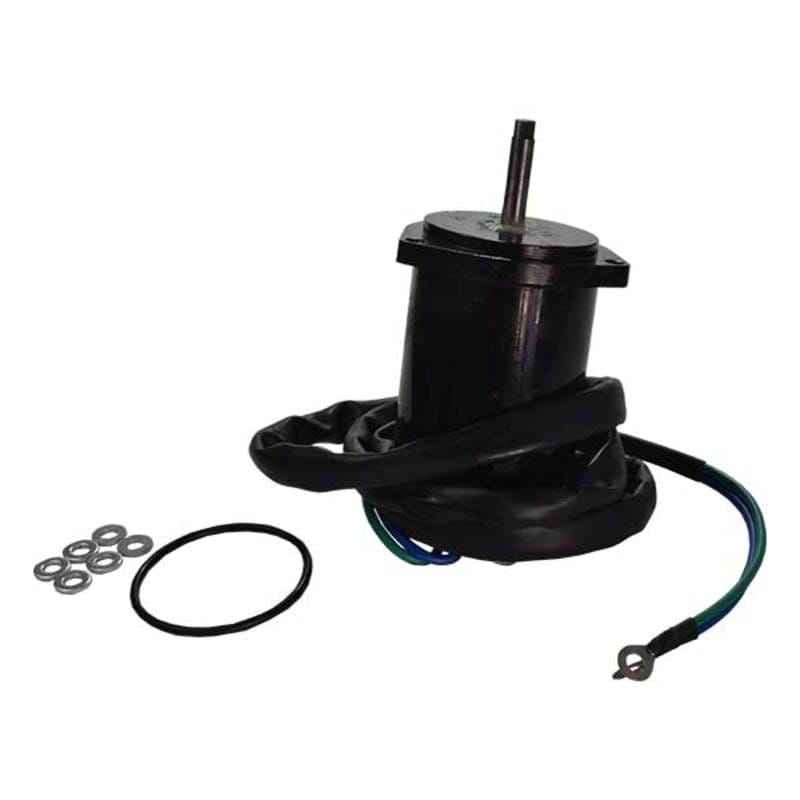

EMP: 300-94066
Mallory: 9-18409
Sierra: 18-6811

Ersätter orginalnummer: 62Y-43880-00-00 62Y-43880-01-00 62Y-43800-01-4D 62Y-43800-01-8D 62Y-43880-02-00 62Y-43800-10-8D 62Y-43800-11-00 62Y-43800-12-00 69W-43880-00-00 69W-43880-01-00 CS3-43880-00-00 62Y438800000 62Y438800100 62Y43800014D 62Y4380001

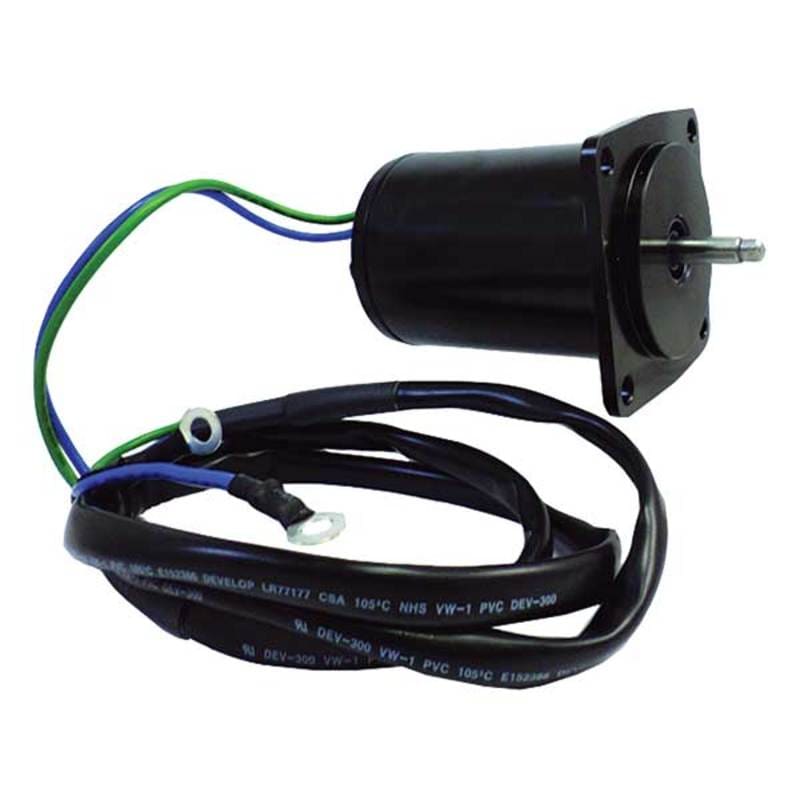

Sea-X trimmotor Yamaha F75/F80/F90/F100 (1999-04)

Yamaha
F75 2003-2004
F80 1999-2004
F90 2003-2004
F100 1999-2004

Yamaha
67F-43880-00-00

API Marine: PT615NM
ARCO: 6261
EMP: 300-56217
Mallory: 9-18410
Sierra: 18-6787

Ersätter orginalnummer: 67F-43880-00-00 67F438800000

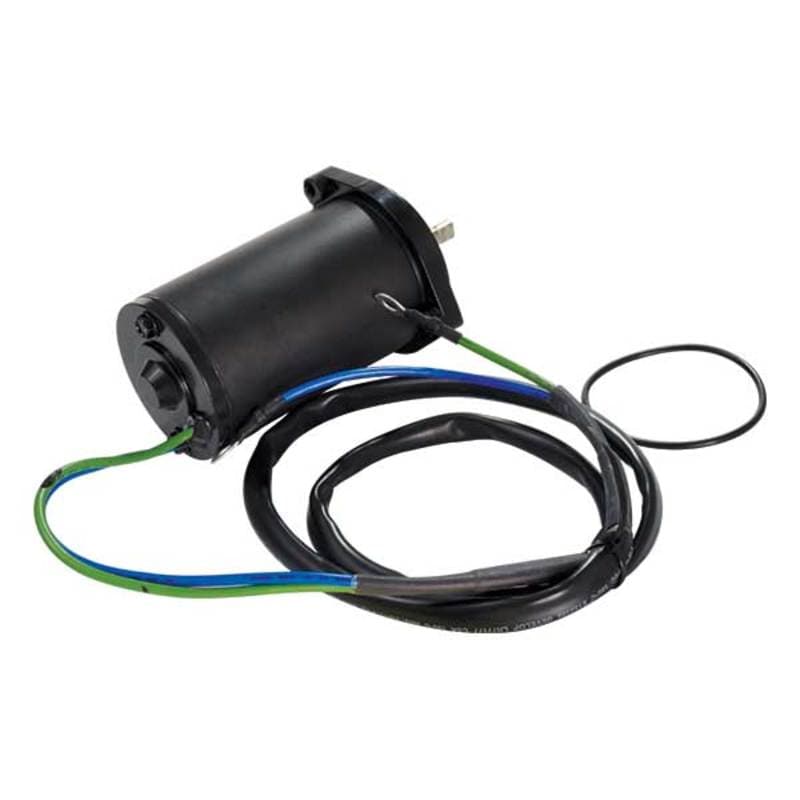

Sea-X trimmotor Yamaha F50/T50/F60/T60 (2005-15)

Yamaha
50-60 HP 2005-15 (4-Stroke)
F50/T50
F60/T60

Yamaha
6C5-43880-00-00
6C5-43880-01-00

ARCO: 6257
EMP: 300-53125
Mallory: 9-18412
Sierra: 18-6836

Ersätter orginalnummer: 6C5-43880-00 6C5-43880-01 6C5-43880-00-00 6C5-43880-01-00 6C5438800000 6C5438800100
